Product information

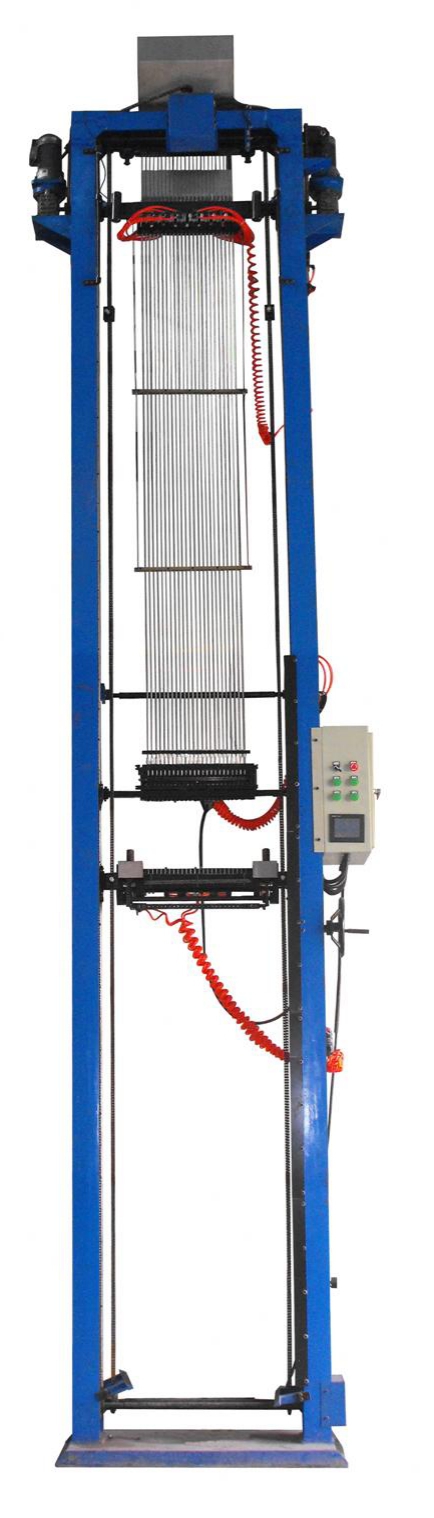

FMPLC double guarantee medium magnesium oxide powder filling machine

a Main number of stations: 48, 30, 24, 18, 16, 12, 8, 6, etc.
b Length: from 300mm to 10000mm.
c Pipe diameter: from 7.5mm to 28.5mm.
d One machine applies one specification principle.
FM24-PLC (Dual Guarantee Medium 6-48 Station) Magnesium Oxide Powder Filling Machine is a magnesium oxide powder filling equipment designed and manufactured with reference to the characteristics of imported similar machines and combined with domestic conditions; machine control adopts PLC + human-machine interface ( Touch screen) control, increased linear guide rail and rotary clamping mechanism; the machine can be equipped with (6-48) multi-station structure ranging from stations, customized according to customer requirements, different pipe diameters, and different filling lengths. Currently The longest filling tube can reach 10000mm, and the maximum filling diameter is Φ28.5mm.

Due to the PLC and code counting device used in the design, the required length can be easily adjusted on the machine. As long as the actual length to be filled (empty tube length) is input on the touch screen, the machine will automatically adjust the position, making the adjustment faster and more accurate . The guide tube of the machine adopts a spiral nozzle structure to reduce the outflow of foundation powder; the exposure of the core rod (hook) and the setting of the filling tube length are adjusted by electric power to increase or decrease the tube length, which avoids the difficulty of manual adjustment and The inaccuracy phenomenon is the ideal magnesium oxide powder filling equipment at home and abroad.

型號

適用填充管徑

/填充長度

控制方式 震動方式 電源/功率 使用氣源 尺寸 重量
FM-PLC(6-48)工位

Φ7.5-Φ28.5mm

300mm-8000mm

PLC+touch screen mechanical and electromagnetic 380V/50Hz/500W 0.6Mpa

4500*1700*

1000mm—

176000-1700-1000mm

800kg-2000kg
